SPECIFICATIONS
Model

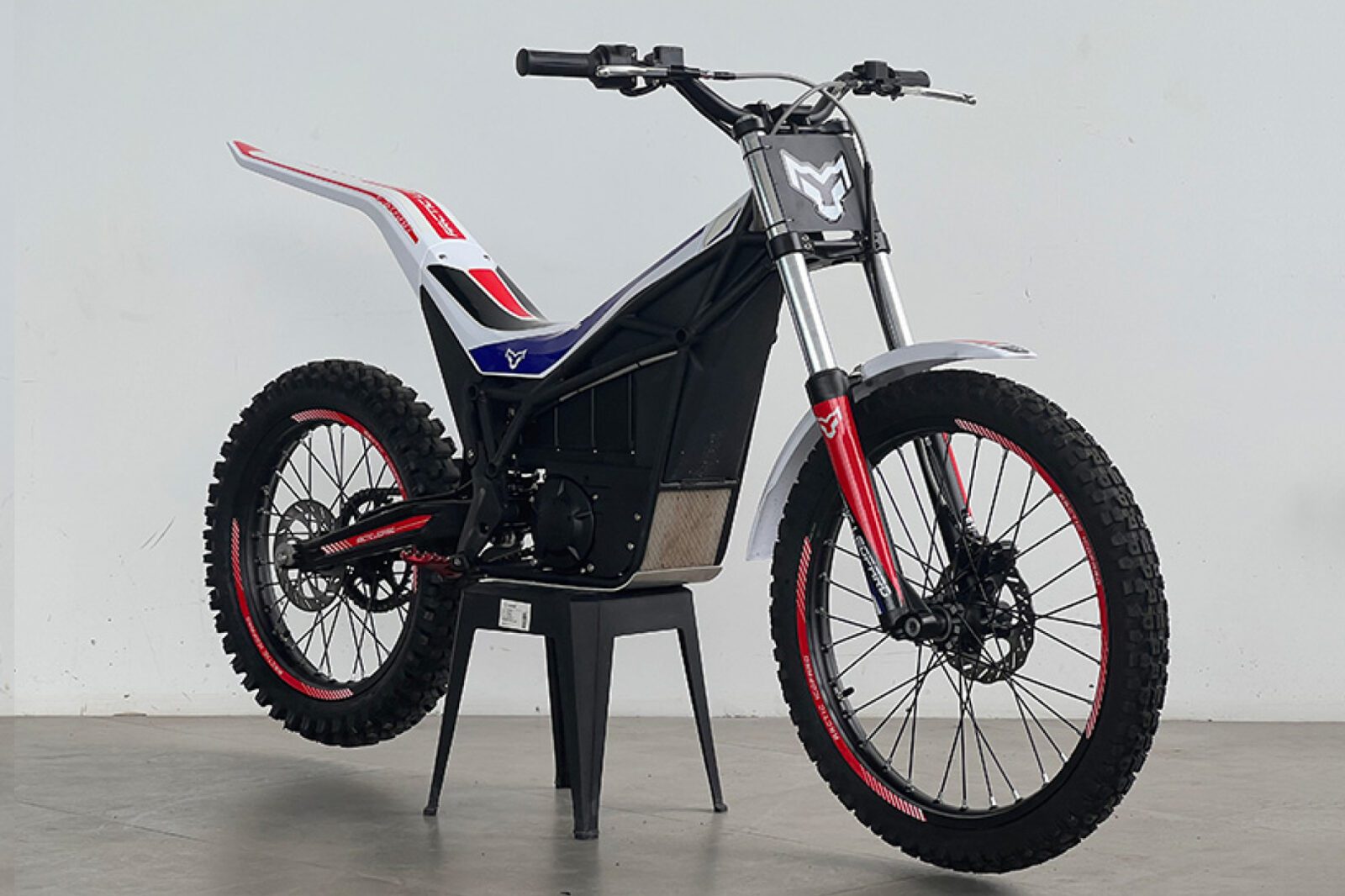

E · AT 560 TRIAL
Frame
Cr-Mo steel frame
Length
2010mm
Width
825mm
Height
1100mm
Wheelbase
1320mm
Seat height
698mm
Ground clearance
310mm
Vehicle weight
65kg
Front wheel specification
2.75-21 (1.6-21 Yousheng 7 series ring)
Rear wheel specification
4.0-18 (2.15-18 Yousheng 7 series ring)
Front brake caliper
185mm/4 piston calipers
Special rear brake
185mm/2 piston calipers
Handlebar
22-28 reducer 6061
Tire (Mages)
Zhengxin
Front shock absorption as standard
40mm Fork Stroke 170mm
Standard rear suspension
Stroke 180mm
Special rear suspension
+180USD
Rear shock absorption of gas cylinder
+350USD
Maximum Range
80km
Maximum Speed
90km/h
Drive Ratio
520 11:39
Torque on wheel
560Nm
Maximum power
10kw
Motor efficiency
0.96
Power mode
Competition, sports, standards
Electronic brake
Yes
energy recovery
Yes
Reverse
Yes
Battery
72V 25Ah
Charge Time
600W（3h full）
