Backlit Control Display
The smart LCD is backlit to provide you with all of the data while riding in all conditions
Front Suspension
Combined with the fat tires, the front fork provides a plush soft rides even off road.
20″ x 4.0″ Tires
4″ wide tires provide enough comfort,grip and cushion to ride on mars or the moon.
Suspension Seatpost
Front suspension combined with a suspension fork will make your ride feel like a walk in park.
Thumb Throttle
Super intuitive and safe throttle control with the use of your thumb.
Front Suspension
Disc Brakes will stop you on a dime in all conditions.
LED Lights
Integrated front and rear lights means you will be seen, also has a brake light for urban riding.
Folding
The biggest feature of the Ultra is it’s ability to hide in a small closet or trunk.. even fit two in a car and go for an adventure!
SPECIFICATIONS
Tech Specs
Frame Types / Frame Sizes:
Step-through
Frame Material:
6061 Aluminum Alloy
Attachment Points:
Integrated Rear Rack Carrier, Front Rack Carrier, Front/Rear Fender Bosses
Gearing Details / Shifter Details: 7
Speed 1×7 Shimano Triggers on Right Bar
Cranks / Pedals:
Prowheel Aluminum / Wellgo Nylon
Headset / Stem / Handlebar:
Oversized, Tapered / Promax, Adjustable / Mid-Rise
Brakes Details:
Tektro Hydraulic Disc Brakes with brake sensor with 160 mm Front Rotor and 160 mm Rear Rotor
Grips / Saddle:
Round Synthetic Rubber Grips/ Black Velo Soft Rubber Saddle
Seatpost / Seatpost Diameter:
Promax / 30.4*400MM
Rims:
Double Walled Aluminum
Fenders:
Front and Rear
Tires:
Kenda 20″ x 4″ / Schrader Valve
Lights:
Front and rear integrated LED lights. Taillights works as a functional brake light.
Bike Weight:
65lbs
Load Capacity: Recommended for performance:
300lbs. Max Capacity is 440 lbs.
Display Type / Readouts:
Fixed Backlit Monochrome LCD / Power (Current), Battery Level 5 Bars, Speed,
Assist Level (0-5),
Odometer, Trip Distance, and headlight control.
Drive Modes:
Cadence Sensing Pedal Assist, Throttle
Top Speed:
40 KM
Bicycle Details
Frame Types / Frame Sizes: Step-through
Frame Material: 6061 Aluminum Alloy
Attachment Points: Integrated Rear Rack Carrier, Front Rack Carrier, Front/Rear Fender Bosses
Gearing Details / Shifter Details: 7 Speed 1×7 Shimano Triggers on Right Bar
Cranks / Pedals: Prowheel Aluminum / Wellgo Nylon
Headset / Stem / Handlebar: Oversized, Tapered / Promax, Adjustable / Mid-Rise
Brakes Details: Tektro Hydraulic Disc Brakes with brake sensor with 160 mm Front Rotor and 160 mm Rear Rotor
Grips / Saddle: Round Synthetic Rubber Grips/ Black Velo Soft Rubber Saddle
Seatpost / Seatpost Diameter: Promax / 30.4*400MM
Rims: Double Walled Aluminum
Fenders: Front and Rear
Tires: Kenda 20″ x 4″ / Schrader Valve
Lights: Front and rear integrated LED lights. Taillights works as a functional brake light.
Bike Weight : 65lbs
Load Capacity: Recommended for performance: 300lbs. Max Capacity is 440 lbs.
Electronic Details

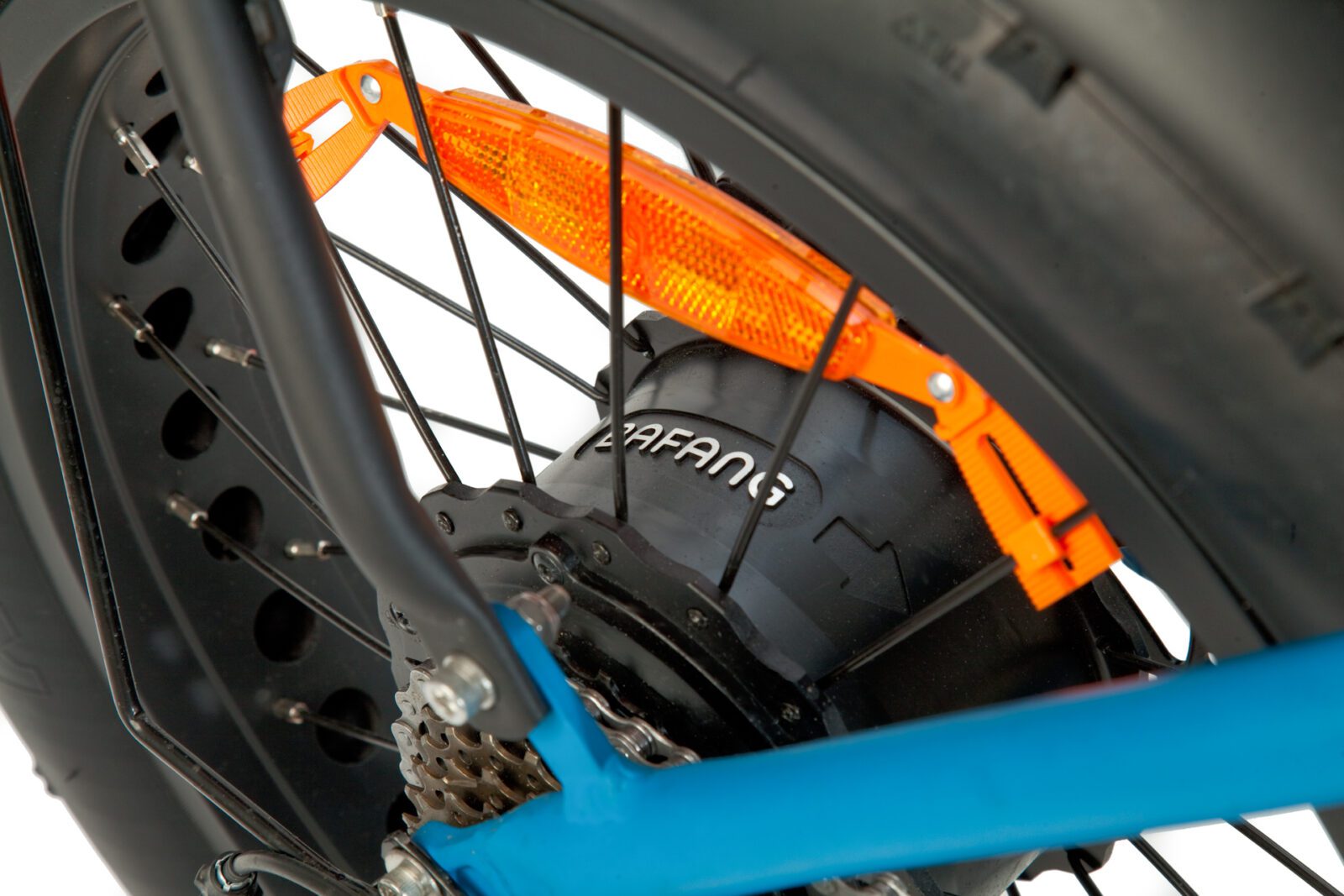

Motor: Bafang – Rear-Mounted Geared Hub, 500 watt
Battery: 48 volt 15 / 17.5Ah / 21Ah Samsung Lithium Ion Cells
Attachment Points: Integrated Rear Rack Carrier, Front Rack Carrier, Front/Rear Fender Bosses
Display Type / Readouts::Fixed Backlit Monochrome LCD / Power (Current), Battery Level 5 Bars, Speed, Assist Level (0-5), Odometer, Trip Distance, and headlight control.
Drive Modes: Cadence Sensing Pedal Assist, Throttle
Top Speed: 40 KM
Estimated Charge Time
Charger Type
2A
3A
15AH
6-8H
4-6H
17.5AH
8-10H
5-7H
21AH
10-12H
6-8H
*Note- 15 AH comes with 2A Charger/ 17.5 AH and 21 AH comes with 3A charges
Estimated Min and Max Range
15AH
17.5AH
21AH
60-90 KM
80-120 KM
100-140 KM

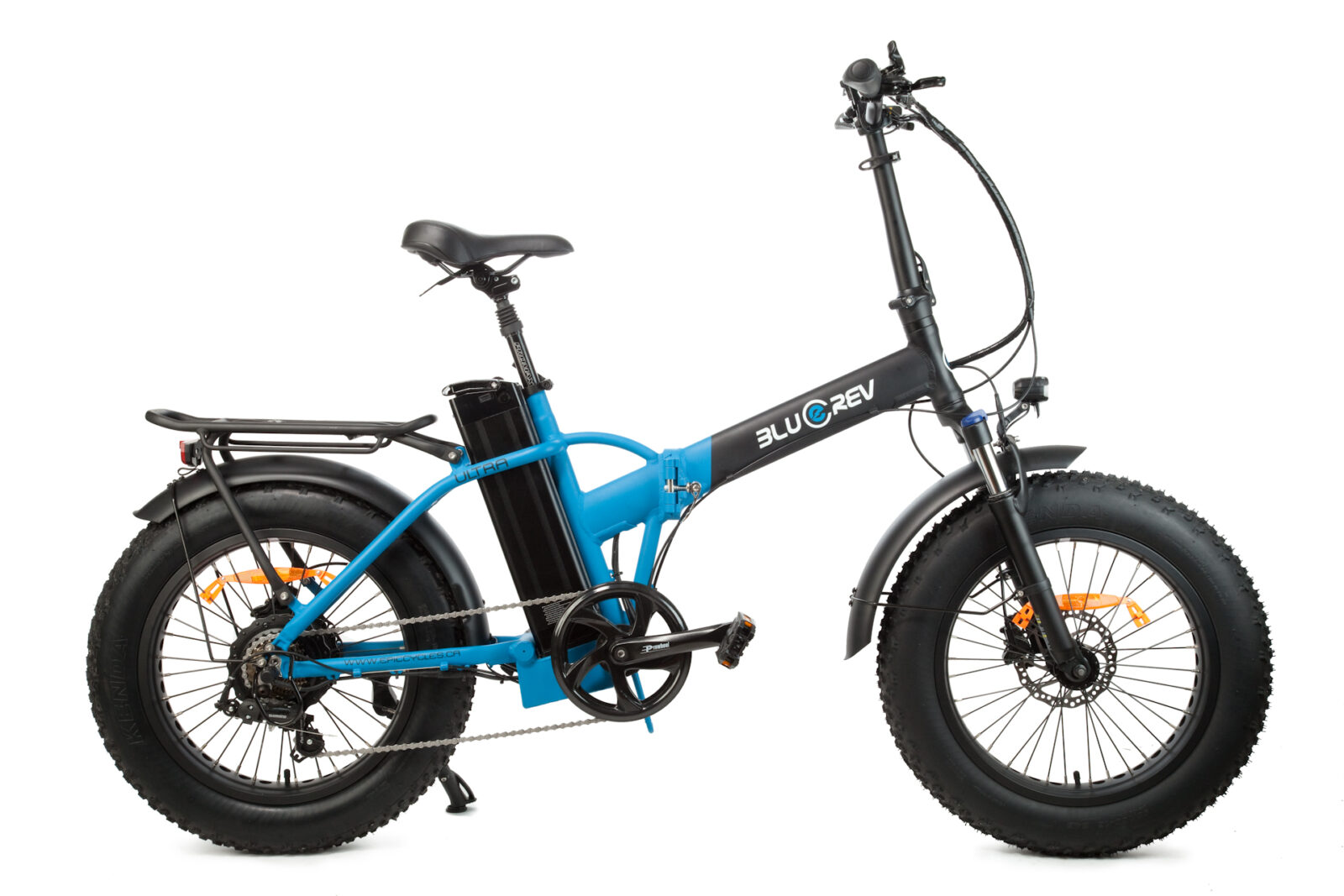

The BlueRev Ultra can be described as the robust fat folding electric cargo bike. The Ultra features an easy step-through design which works great for any sized rider. It has a convenient foldable frame that allows the bike to fit inside a trunk of most automobiles, RV or boat. The ultra is coupled with a powerful 500 Watt motor and is also equipped with a hydraulic braking system to ensure smooth and fast braking.
