Redefine Riding
Engineered for uncompromising power, control, and customization, the X-9000_V3 redefines what you can expect from your electric motorbike. Whether you are tearing up the trails, dominating urban streets or pushing limits on the track, this controller is built to push boundaries and unlock your bike’s full potential.
Plug and Play kits available for:
– SurRon Light Bee
– SurRon Ultra Bee
– Talaria MX3 / MX4 / MX5
– Talaria XXX
– ERide Pro
– Rerode R1
The current list of motors that the X-9000_V3 is compatible with is below:
– OEM SurRon Light Bee (Hall)
– OEM SurRon Ultra Bee SPM (Encoder)
– OEM SurRon Ultra Bee IPM (Encoder)
– OEM SurRon Ultra Bee IPM 21kW (Encoder)
– OEM Talaria Sting MX3 or before (Encoder)
– OEM Talaria Sting R MX4 (Encoder)
– OEM Talaria Sting R MX5 (Encoder)
– OEM Talaria XXX (Encoder)
– OEM E Ride Pro 2.0 (Encoder)
– OEM E Ride Pro 3.0 (Encoder)
– OEM E Ride SR (Encoder)
– EBMX XTA-60
– EBMX XLB-60 (Encoder)
– EBMX XLB-60 RACE (Encoder)
– EBMX XUB-80 (Encoder)
– EW16ZB (Encoder)
– KO Big Block (Hall)
– KO RS (Hall)
– KO F Spec (Encoder)
– KO F Spec (Hall)
– QS138 – 90H (Hall)
– QS138 – 70H Gearbox (Hall)
– QS165 (Hall)
– Rerode R1 (Encoder)
– Sotion FW01 (Hall)
– Sotion FW01 Pro (Hall)
– Sotion FW02 (Encoder)
– Sotion FW02 (Hall)
– Sotion GTS01 (Hall)
– XEMX X4 (Encoder)
Built from the ground up for serious riders and racers, the EBMX X-9000 V3 is more than just a controller — it’s a complete performance ecosystem. With a re-engineered power stage, cutting-edge logic system, and a redesigned user interface, it’s one of the most advanced rider-focused controllers available.
Power Meets Control
– 50kW Output | 1000A Phase Current | 1600A Burst
– 30 120V Infineon MOSFETs for performance and reliability under extreme conditions
– Redesigned multilayer PCB and CNC copper busbars for improved thermal control
– Water-cooling option for race-level endurance
– IP67 rated CNC alloy case built for harsh riding environments
Next Gen Logic
– Industry-leading 68 IO support for race builds and fully featured setups
– Custom EBMX VESC firmware with Field-Oriented Control (FOC) for smooth throttle response and improved efficiency
– Integrated IMU for wheel lift assist with programmable launch control, anti-loop, or stunt mode
– Dual hall throttle ready with two ADC inputs for added safety and reliability
Race Ready, Rider Tuned
– Six fully customizable power levels with race and street modes
– Graphical interface for throttle tuning, regen braking, and EBMX E-Clutch
– Load and go battery profiles with more than 15 plug-and-play setups
– Preloaded motor tunes supporting 30+ motors
– One-touch over-the-air firmware updates
EBMX X-9000 V3 Specifications
Rated Power: 50kW
Input Voltage Range: 40–120V
Working Voltage Range: 48–110V (26S)
Phase Current: 1000A continuous, 1600A burst
Motor Control Protocol: Field Oriented Control (FOC)
Construction
30 120V Infineon MOSFETs
Full CNC case
Billet CNC bus bar system
Interchangeable heat sinks
Firmware
VESC-based motor control firmware modified by EBMX
Operating Temperature Range
-25°C to 80°C
Inclusions
X-9000_V3 Controller
Black air-cooled heat sink
SW102T display
Regen thumb throttle
2-in-1 CANBUS harness
Bluetooth module
Hardware
Optional Additions
Water-cooled heat sink
Large colour display
Colour heat sink

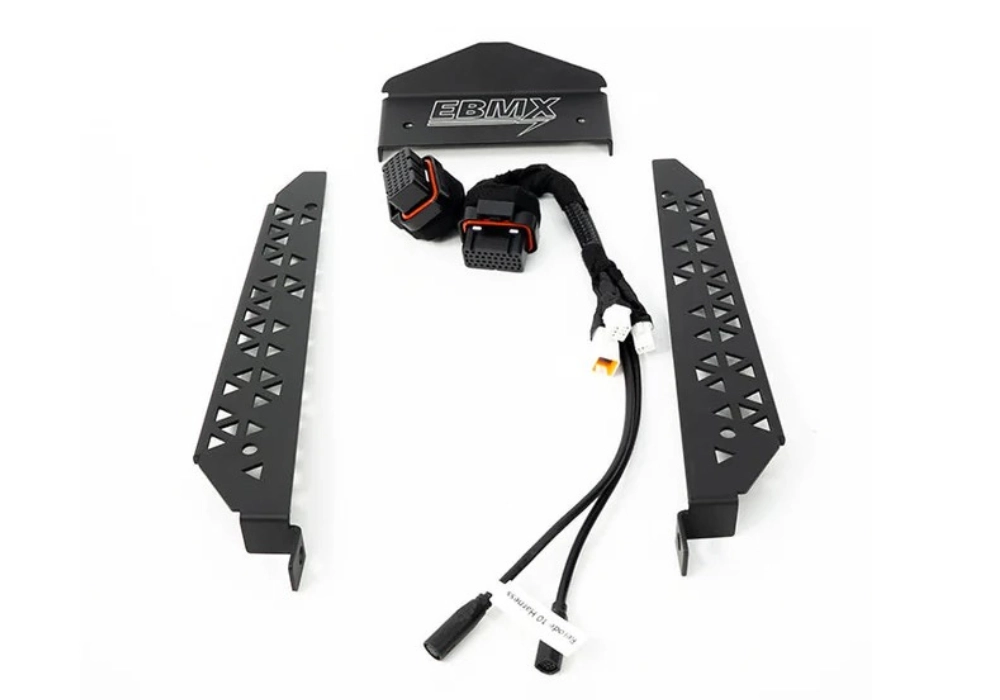

Bike-specific fit kits
Features
68 IO count
Built-in IMU for wheel-lift control
Dual hall throttle ready
X-Series app compatible for custom tuning
Pre-tuned for stock and aftermarket batteries
Supports 30+ motors
