ABOUT
Plug and Play kits available for:
- SurRon Light Bee
- SurRon Ultra Bee
- Talaria MX3 / MX4 / MX5
- Talaria XXX
- ERide Pro
- Rerode R1
The current list of Motors that the X-9000_V3 is compatible with is below:
- OEM SurRon Light Bee (Hall)
- OEM SurRon Ultra Bee SPM (Encoder)
- OEM SurRon Ultra bee IPM (Encoder)
- OEM SurRon Ultra bee IPM 21kW (Encoder)
- OEM Talaria Sting MX3 or before (Encoder)
- OEM Talaria Sting R MX4 (Encoder)
- OEM Talaria Sting R MX5 (Encoder)
- OEM Talaria XXX (Encoder)
- OEM E Ride Pro 2.0 (Encoder)
- OEM Eride Pro 3.0 (Encoder)
- OEM Eride SR (encoder)
- EBMX XTA-60
- EBMX XLB-60 (Encoder)
- EBMX XLB-60 RACE (Encoder)
- EBMX XUB-80 (Encoder)
- EW16ZB (Encoder)
- KO Big Block (Hall)
- KO RS (Hall)
- KO F Spec (Encoder)
- KO F Spec (Hall)
- QS138 – 90H (Hall)
- QS138 – 70H Gearbox (Hall)
- QS165 (Hall)
- Rerode R1 (Encoder)
- Sotion FW01 (Hall)
- Sotion FW01 Pro (Hall)
- Sotion FW02 (Encoder)
- Sotion FW02 (Hall)
- Sotion GTS01 (Hall)
- XEMX X4 (Encoder)

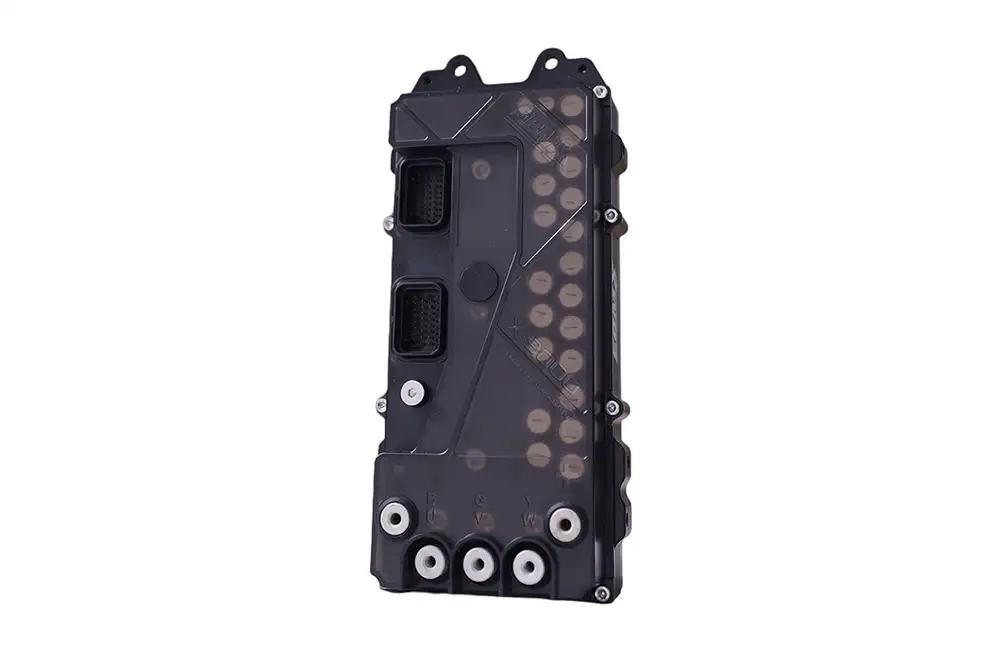

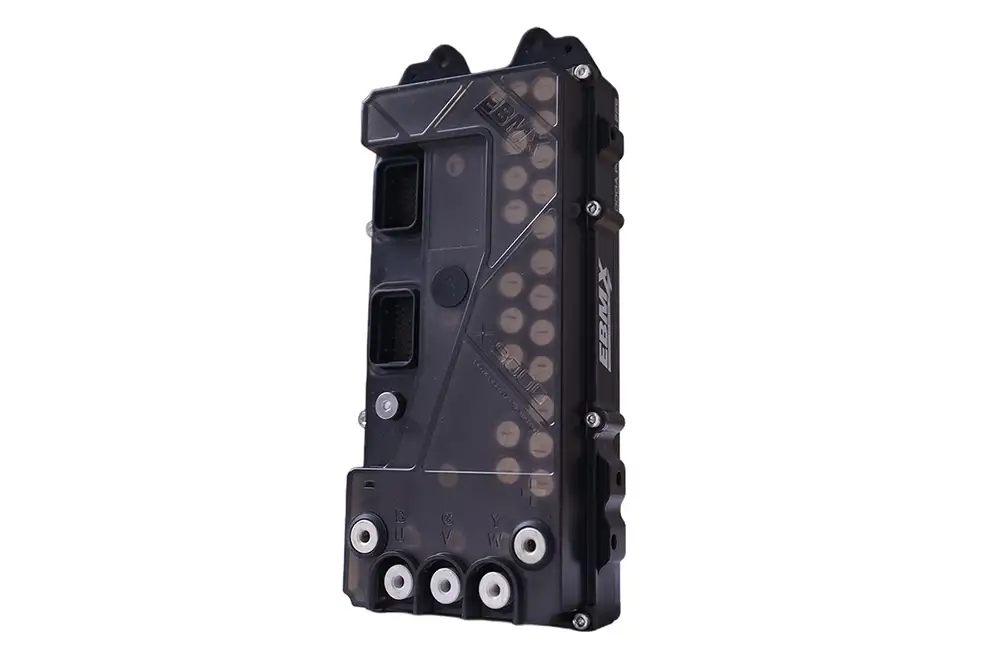

Built from the ground up for serious riders and racers, the EBMX X-9000 V3 is more than just a controller — it’s a complete performance ecosystem. With a re-engineered power stage, cutting-edge logic system, and a redesigned user interface, it’s the most advanced, rider-tuned controller on the market.
Power Meets Control
• 50kW Output | 1000A Phase Current | 1600A Burst
• 30 120V Infineon MOSFETs for performance and reliability under extreme conditions
• Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control
• Water-Cooling Option for race-level endurance
• IP67 Rated & CNC Alloy Case – Built to take the punishment
Next Gen Logic
• Industry-Leading 68 IO Support – Runs anything, from race bikes to full featured builds
• Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, and greater efficiency
• Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, anti-loop, or stunt mode
• Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability
Race-Ready, Rider Tuned
• 6 Fully Customizable Power Levels (Race + Street Modes)

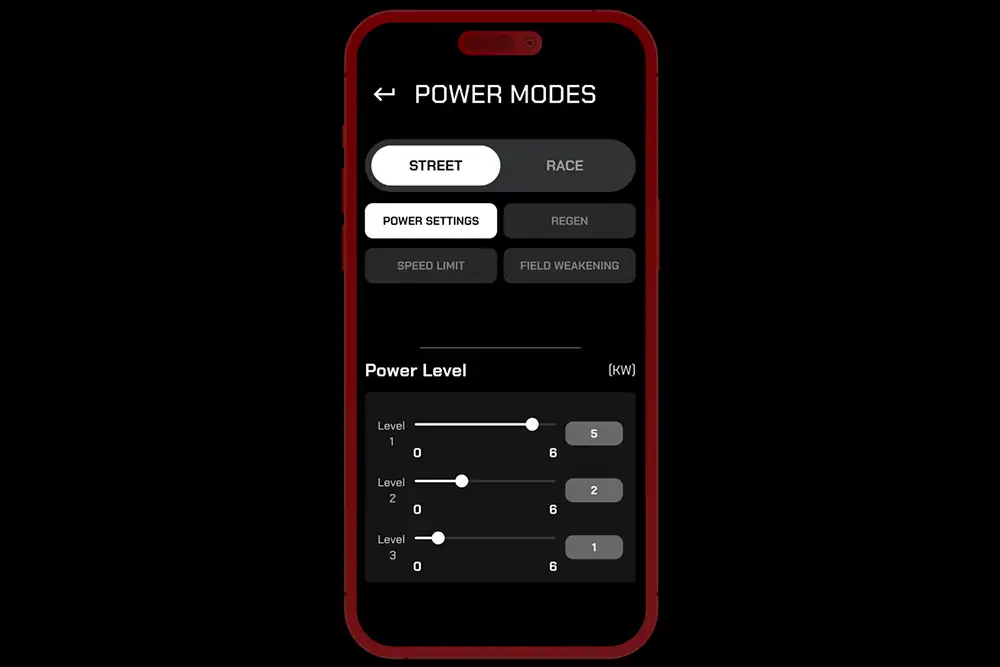

• Graphical UI for Throttle Tuning, Regen Braking & EBMX E-Clutch
• Load & Go Battery Profiles – Over 15 plug-and-play setups
• Preloaded Motor Tunes – 30+ motors supported out of the box
• One-Touch Updates – OTA firmware & compatibility expansion
SPECIFICATIONS
| RATED POWER | 50KW |
| INPUT VOLTAGE RANGE | 40-120V |
| WORKING VOLTAGE RANGE | 48-110V (26S) |
| PHASE | 1000A (continuous) 1600A (BURST) |
| MOTOR CONTROL PROTOCOL | Field Oriented Control (FOC) |
| CONSTRUCTION | 30 120v Infineon Mosfets Full CNC Case Billet CNC Bus Bar System Interchangeable heat sinks |
| FIRMWARE | VESC based motor control and firmware modified by EBMX |
| OPERATING TEMPERATURE RANGE | minus 25 to 80 Degrees Celsius |
| INCLUSIONS | X-9000_V3 Controller Black Air Cooled Heat Sink SW102T Display Regen Thumb Throttle 2-1 Harness (canbus) Bluetooth Module Hardware |
| OPTIONAL ADDITIONS | Water Cooled Heat Sink Large Colour Display Colour Heat sink Choose the fit kit for your bike |
| FEATURES | 68 IO Count Built in IMU for integrated wheel-lift control Dual hall throttle ready X-Series App compatible for custom tuning Pre tuned for stock and aftermarket batteries Tuned for 30+ motors |
| WARRANTY | 2 Years |
