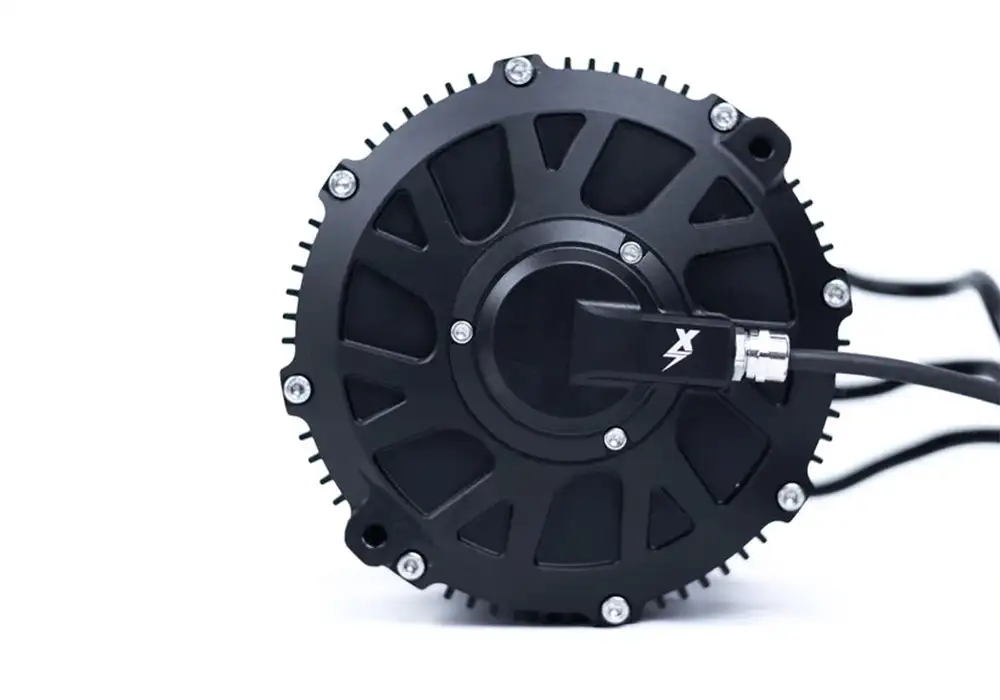

Name: EBMX XLB-60 Motor
SKU: 200297
Availability: InStock

EBMX XLB-60 Motor

Choose the CORE if you want:
- A smooth, agile throttle response and improved low-end control.
- Reliable performance on tight trails or for stunt riding.
- Good power (~32–35 kW real-world) with a dynamic feel.
Choose the RACE if you want:
- Maximum top-end speed and torque, including drag strip or high-speed trail use.
- Higher real-world performance (~36–38 kW) and sustained power to ~14,000 RPM.
- A motor designed for serious heat and RPM endurance in high-stress environments.

XLB-60 CORE vs RACE: Side-by-Side Specifications

Feature	XLB-60 CORE	XLB-60 RACE
Stator Size	64 mm	65 mm
KV Rating	87 KV – smoother, torque-focused output	105 KV – more RPM and top-end speed
Peak Power	~41 kW (at 90 V / ~1100 phase amps)	~42 kW (at 92 V / 1200 phase amps)
Real-World Power Output	~32–35 kW on 20 S / 72 V setup	~36–38 kW on 22 S / 81 V setup
Peak Torque	Estimated around 70–75 Nm	97 Nm (at 1200 phase amps)
Max Rotor RPM	~12,000 RPM	~14,000 RPM
Riding Style Fit	Trails, technical off-road, agile/stunt riding	MX racing, drag strip, high-speed off-road riding
Gearing Recommendations	18” → 52 T / 16” → 48 T	18” → 58–64 T / 16” → 54–58 T / 17” → 56–60 T
Other Specs	~12.2 kg, IP67 waterproof, smooth control via encoder	~12.2 kg, IP67 waterproof, enhanced RPM control via encoder

EBMX XLB-60 Motor

Version
Harness Type	Clear
