SPECIFICATIONS

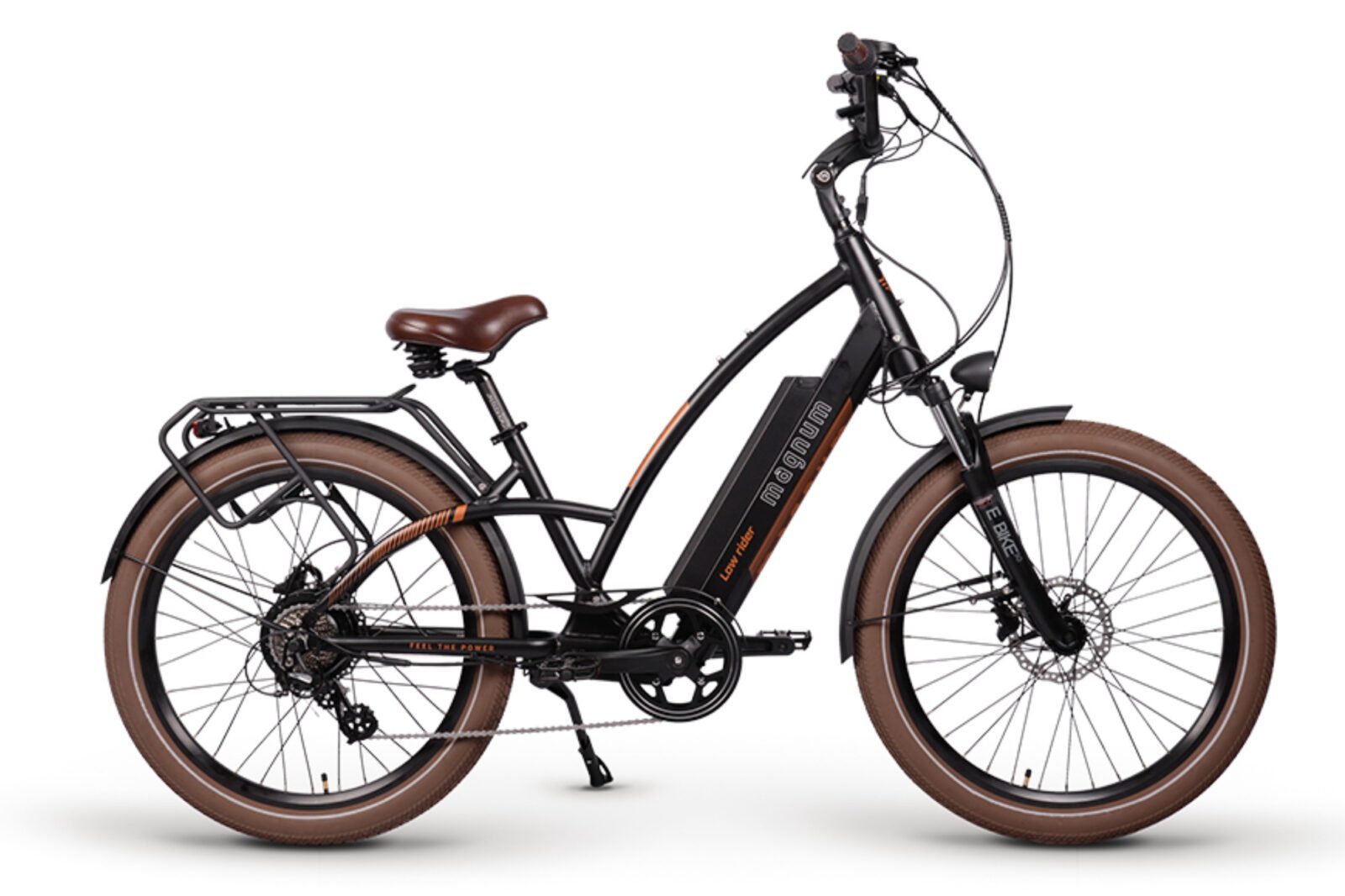

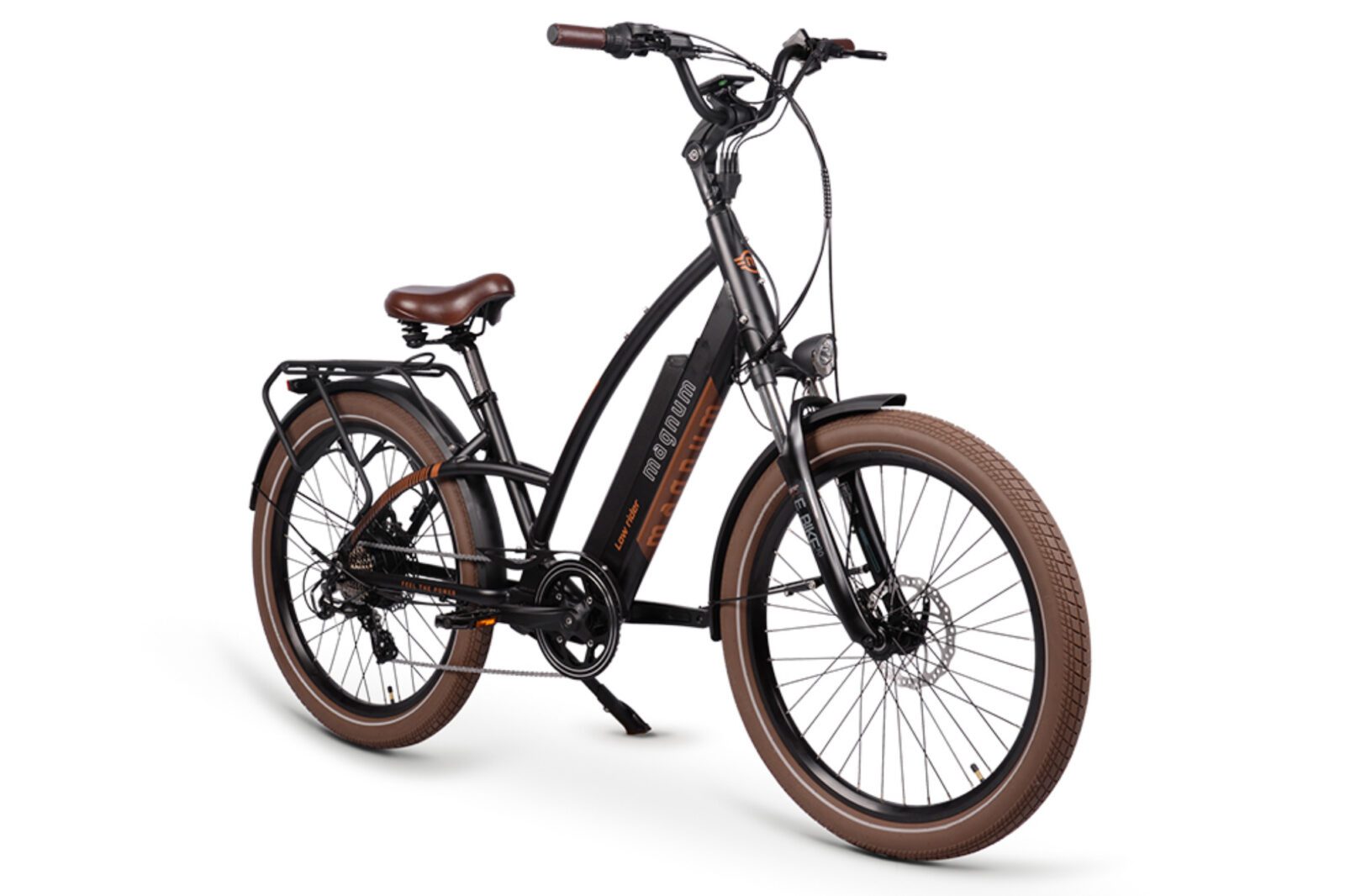

Model: Magnum Low Rider
Body Position: Upright
Electric Bike Class: Throttle on Demand
Warranty: 1 Year Comprehensive
Electronic Details
Motor: 8Fun – Rear-Mounted Geared Hub 500 watt
Battery: Samsung / DLG / Panasonic 48 volt 15 Ah – Lithium Nickel Cobalt Manganese (Li-NCM)
Estimated Charge Time / Estimated Min and Max Range: 6.5 hrs / 48-96 km/hr
Display Type / Readouts: Fixed Backlit Monochrome LCD / Power (Current), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle
Top Speed: 45km/hr (23 km/hr throttle only)
Bicycle Details
Frame Types / Frame Sizes: Semi Step Thru / 26″*457MM
Frame Material: 6061 Aluminum Alloy
Fork Details: RST, Neon-TNL,with oil suspension and lock system
Attachment Points: Rear Rack Bosses, Fender Bosses
Gearing Details / Shifter Details: 8 Speed 1×8 Shimano Altus M310 / Shimano Triggers on Right Bar
Cranks / Pedals: Prowheel 48T / Wellgo B087, Aluminum Alloy Platform
Headset / Stem / Handlebar: Oversized, Tapered / Promax, Adjustable / Mid-Rise
Brakes Details: Tektro Hydraulic Disc Brakes with brake sensor with 180 mm Front Rotor and 160 mm Rear Rotor
Grips / Saddle: Flat Rubber / Selle Royal Gel (Brown)
Seatpost / Seatpost Diameter: Promax / 30.4*400MM
Rims: Double Walled
Fenders: Front and Rear
Tires: Schwalbe Big Ben 26 in (26″ x 2.15″)/ Kevlar Lined, Reflective Sidewall Stripe / Schrader Valve
Bike Weight: 59 lbs
Max Load: 265 lbs
