THIS IS UNREAL!
Waterproof smart display
165mm hydraulic coil-shock suspensions
All-round lighting system
Full hydraulic 160mm disc brakes
Robust Skeleton Frame
Dual Charging Ports
(1 Charger Included)
SPECIFICATIONS
Frame: One piece 6082 aviation aluminum forging
Battery: 72V 40Ah Panasonic/LG/Samsung with NFC
Net Weight Kg: 47 kg
Max speed km/h: 95 km/hr
Range with average speed around 30km/h: 120km
Motors: 1500Wx2 with hall sensors, peak at 4200Wx2 waterproof quick connector
Controllers: 12 mosfet, 50a max current controllers x2, sine wave, ip65, all waterproof connections
Brakes: Front and Rear full hydraulic brakes with 160mm rotors, 4 piston brake
Suspension: 165mm length standard hydraulic coil shock with rebound adjustment
Lights and Horn: 2000 lumen front led light, side LED strips integrated with turn signal, motorcycle horn, ip 55
Cable system and IP rating: Quick connections for all electric components, for the cables close to handle bar and under the deck. Quick connector for the motor and controller
IP 55 for the whole scooter

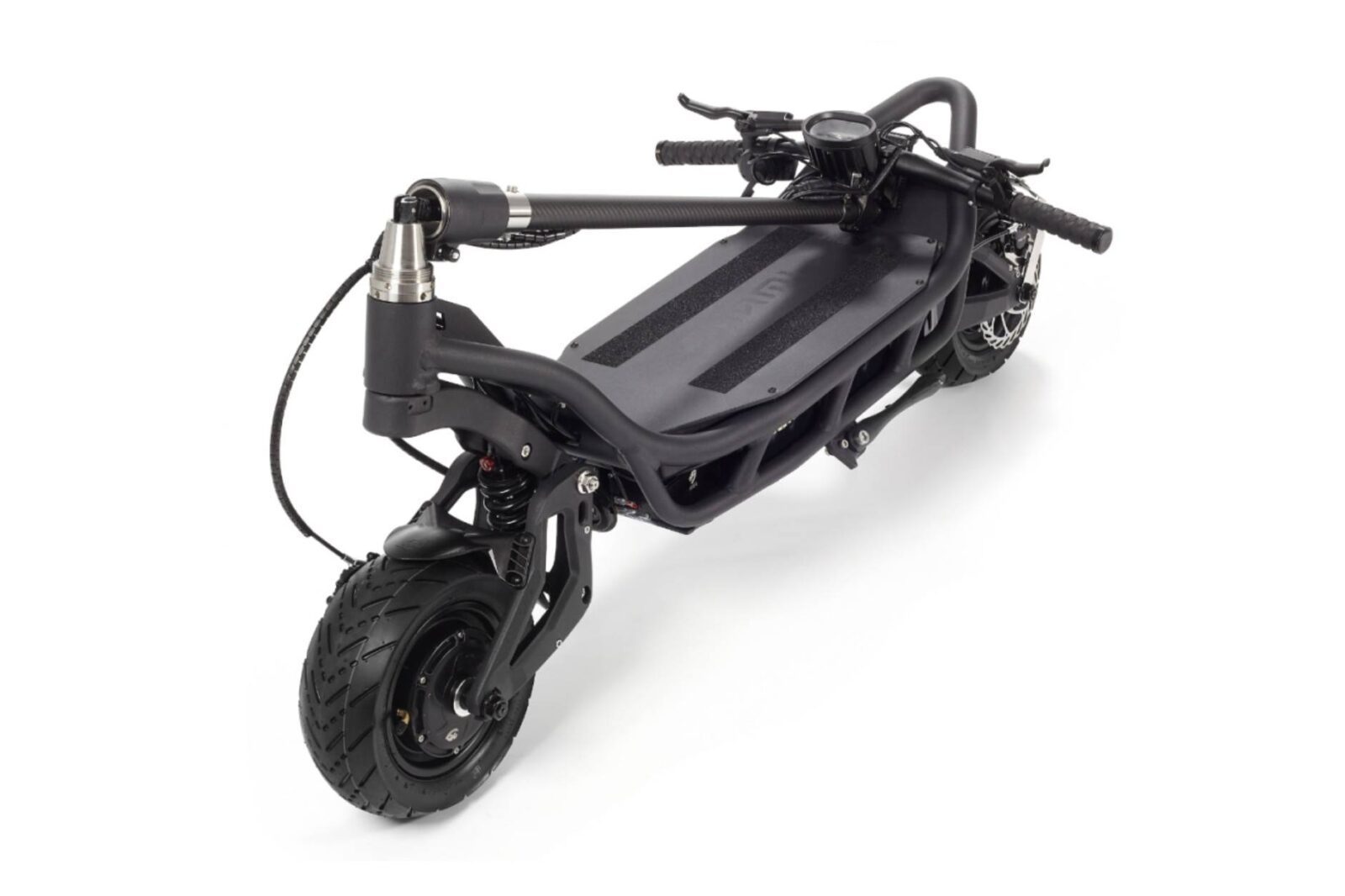

Folding system: Patent designed thread lock taper folding system, 304 stainless steel folding parts
Handle bar and steering column: 31.8mm diameter, full carbon fiber steering column
Tires: Tubeless 90/65-6.5, street or off road tires
Charger: 1 x 5A Charger (included), dual charging ports in the scooter
Steering damper: standard cylinder steering damper
Folding size (length x width x height):
1346mm x 680mm x 640mm
Package size (length x width x height): Honey comb cardboard 1405mm x 355mm x 690mm
Main dimensions (length x width x height):
Overall size: 1346mm x 680mm x 1446 mm
Hanlde bar to deck, 1090mm in height
Deck cover: 564x312mm, 766mm in length include rear foot rest Ground clearence: 150mm min
Top of the deck to the groud 292mm
Dashboard
5 riding modes, parameter settings for each controller is independent,
7 parameter settings under each of the riding modes are
1) Rear motor starting power, from 1 to 5
2) Front motor starting power, from 1 to 5
3) Rear motor max output, from 10 to 100 (percentage)
4) Front motor max output, from 10 to 100 (percentage)
5) Max speed, from 10 to 100 (percentage)
6) E-brake force, from 0 to 5
7) Turbo strength, from 0 to 5 (Turbo will add max speed and reduce the torque of the motor) Smart cruise control, adjust the cruise speed by pressing the switch.
Over heat protection, able to set up the max temperature for the heat protection start, temperature in each controller can be checked any time.
low voltage protection, able to set up the min power percentage for the low power protection start ip65
TAKE FLIGHT!
ON THE STREET
