ABOUT
- TiAlN (Titanium Aluminium Nitride) stanchion coating offers micro-level smoothness, superior lubrication, outstanding wear and scratch resistance, and excellent thermal stability.
- Precision-honed inner cylinders with a ±0.01 mm tolerance, delivering exceptionally smooth damping and enhanced traction.
- Custom-designed oil and dust sealsstrike an optimal balance between sealing efficiency and low friction, ensuring consistent oil flow over extensive use.
- Advanced fluid dynamics provide a progressive, quiet, and controlled damping response.
- The link plate, refined through FEM analysis, guarantees high rigidity, fatigue durability, and weight-optimized strength.
IN THE BOX:

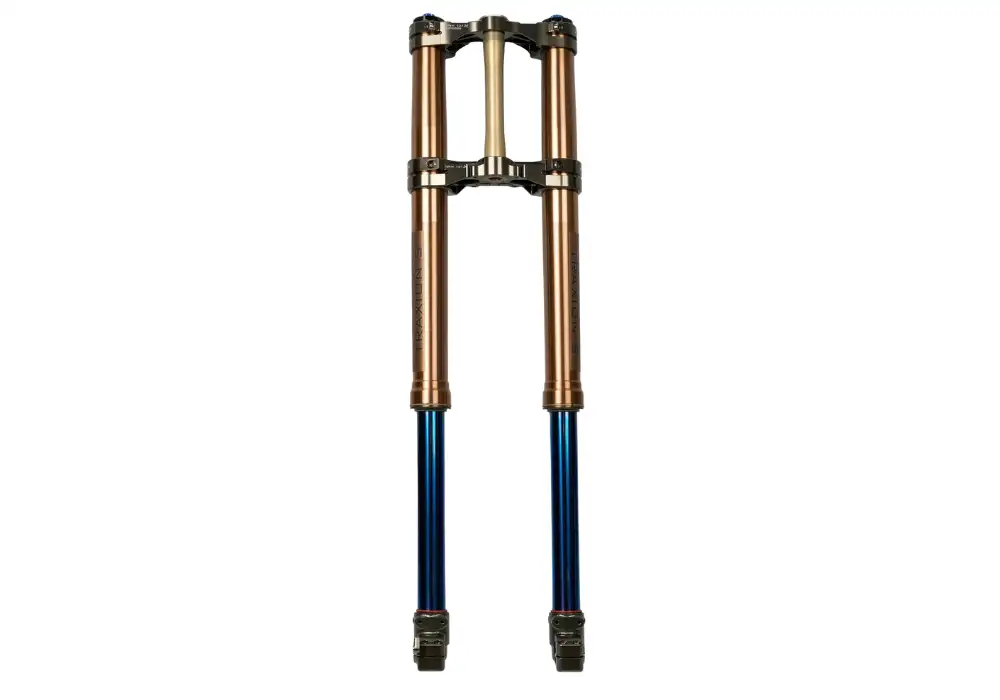

Included is Fork, CNC Crown, CNC Stem and lower bearing pre installed, headset spacers.
Not Included, Stanchion guards, Surron ultra guards can be reused.
TECHNICAL SPECIFICATIONS:
NAME: TRAXION S
DROPOUTS: Surron Ultra Bee
TUBE DIAMETER: Inner 38mm/ Outer 50mm

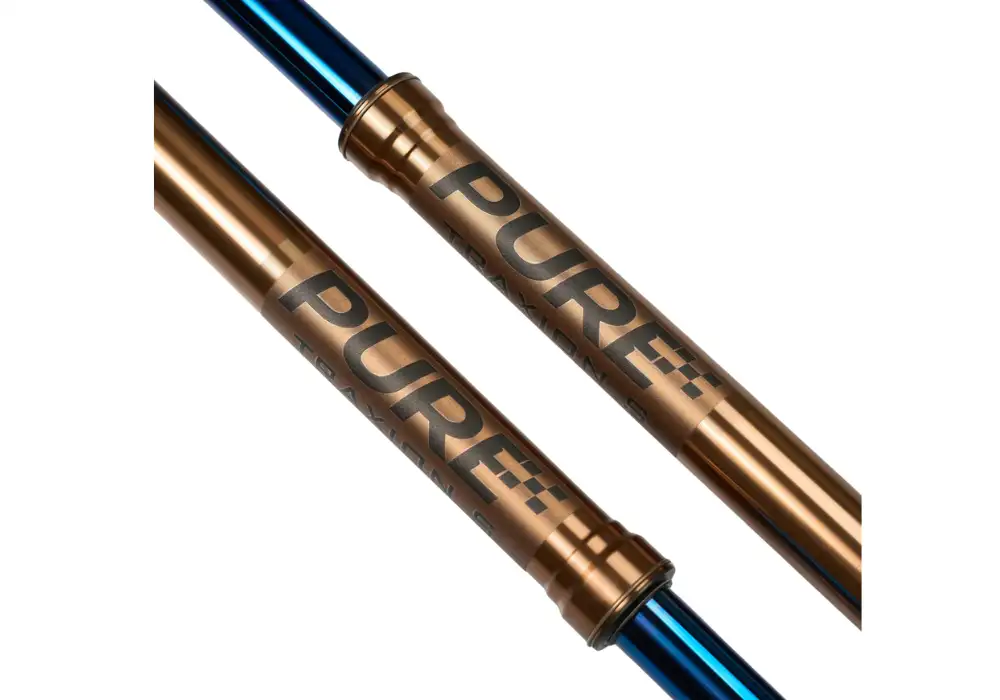

STANCHIONS: Blue TiAlN Titanium Aluminium Nitride coated
TRAVEL: 260mm
EXTENDED LENGTH: 850mm
CROWN & STEM: Billet Aluminium, anodized coating
DAMPER: Dual sealed closed cartridges, dual-spring
RIDING STYLE OPTIONS: Light and Medium (TR) / Medium and Heavy (MX)
COMPRESSION DAMPING: 24-stage adjustable
REBOUND DAMPING: 24-stage adjustable
