ABOUT THIS ITEM

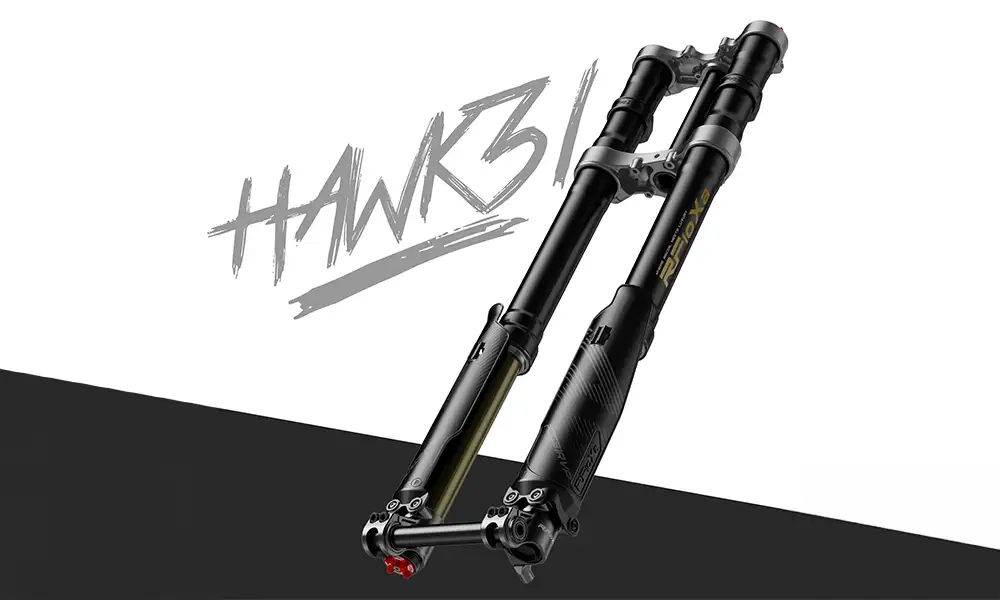

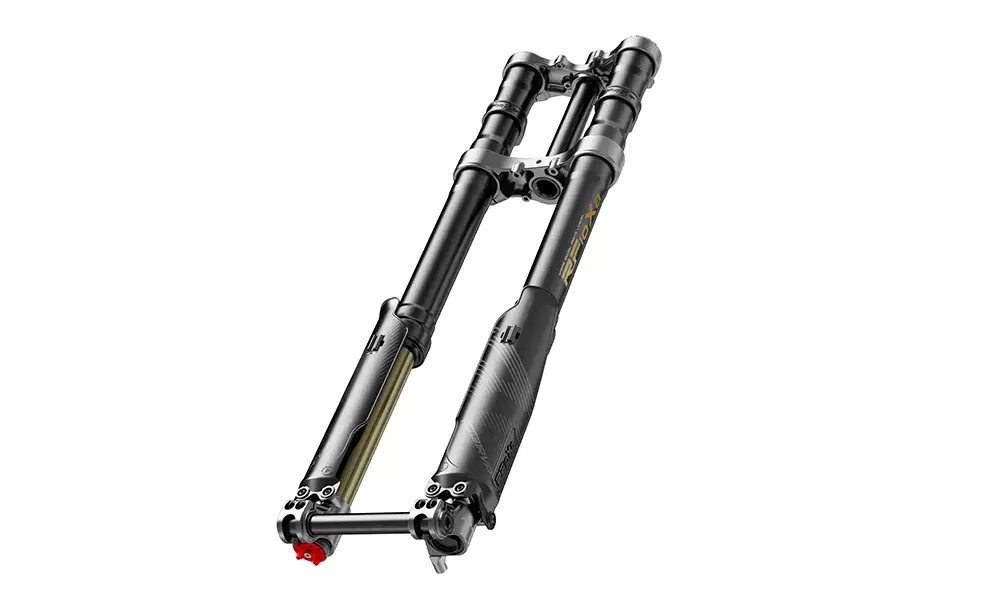

① High-Performance Design — The Hawk31 front fork features an impressive travel range of 203mm (if need up to 228mm, need contact us to customize) and is designed for top-tier performance in downhill and off-road biking. With a stanchion diameter of 37mm and a caliper mount spacing of 74mm, it’s compatible with 203mm disc brakes (with options for upgrades), making it ideal for electric dirt bikes and downhill bikes.
② Advanced Suspension Technology — This fork employs an inverted oil-spring damping system with asymmetrical left and right legs for a unique, independent structure. It includes multi-stage adjustments for high-speed compression damping, low-speed compression damping, rebound damping, and spring preload, allowing for precise tuning to match your riding style and terrain.
③ Robust Build Quality — Constructed with AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum alloy for the fork tubes, the Hawk31 is built for durability and strength. The use of 55CRSI spring wire ensures resilience and performance under stress.
④ Customizable Adjustments — All adjustment functions, including Multi-stage High-Speed Compression, Low-Speed Compression, rebound, and preload settings, are controlled by easy-to-use manual knobs. This allows for quick and convenient tuning in various riding conditions, ensuring optimal performance and comfort.
⑤ Enhanced Bottom-Out Support — The fork features a unique oil pressure bottom-out design that provides strong support at the end of the travel, enhancing stability and reducing the impact of hard hits.
⑥ Reliable Damping Performance — The internal damping system includes dual compression valve plates, ensuring stable and reliable compression damping. The fork uses high-quality, low-friction, low-freezing-point shock absorber oil to maintain consistent damping performance, even in extreme conditions.
FEATURES:
- Center Distance: 750-800mm
- Main Piston Travel: 203-228mm
- Tube Diameter: ∅37mm
- Caliper Mount Spacing: 74mm
- Disc Brake Size: ∅203mm (Upgradeable)
- Suitable For: Electric Dirt Bikes, Downhill Bikes
- Compatible with Surron Light Bee X, Talaria Sting, E Ride Pro SS + More
- Damping System: Inverted Oil-Spring
- Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
- Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
- Spring Wire: 55CRSI
Weight:
- 45lbs spring – ≤100kg
- 60lbs spring – 100kg-130kg
- 45-60lbs progressive spring – 80kg-130kg
FAQ
Q: How does the Hawk31 compare to other forks in terms of high-speed and low-speed compression damping?
A: The Hawk31 stands out with its multi-stage high-speed and low-speed compression damping adjustments. Unlike many other forks, which offer limited adjustment ranges, the Hawk31 allows for precise tuning of both high-speed and low-speed compression settings. This means you can customize the fork’s response to different riding conditions, from handling sudden impacts to smoothing out rough terrain. This flexibility provides a more tailored riding experience, ensuring that the fork performs optimally whether you’re hitting high-speed drops or navigating technical trails.
Q: Why is the spring preload adjustment on the Hawk31 important compared to Fastace ALX13RC forks?
A: The Hawk31 features a multi-stage spring preload adjustment that sets it apart from many other forks. This adjustment allows you to fine-tune the amount of preload on the spring, which is crucial for balancing the fork’s responsiveness and support based on your riding style and weight. While some forks offer basic preload settings, the Hawk31’s multi-stage system ensures that you can achieve the perfect balance for both everyday riding and extreme conditions. This level of customization enhances both comfort and control, making the Hawk31 a superior choice for riders who demand more from their suspension.
