CUSTOM ADJUSTABILITY

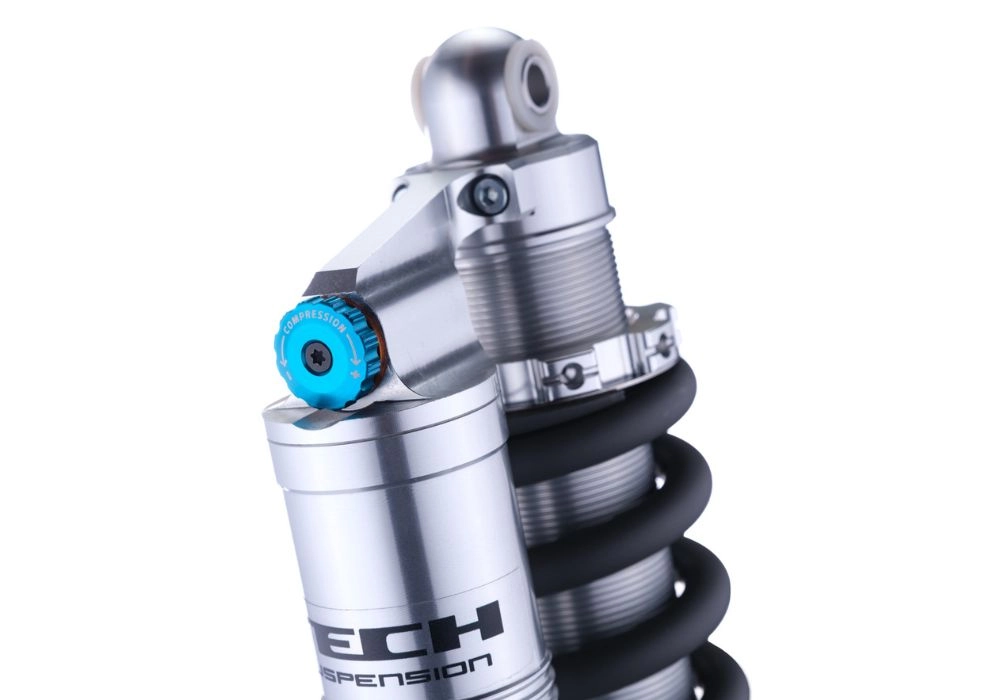

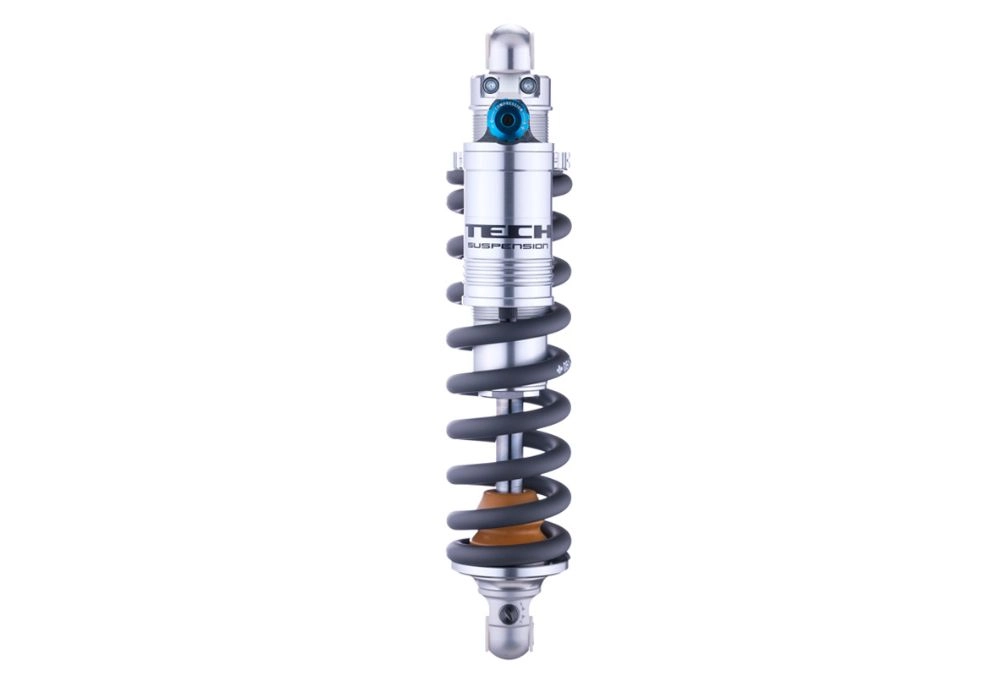

As well as pre-load and rebound adjustment, the ER30 E-Moto Shock is equipped with CTS (Compression Tuning System), a patented Formula and TECH Suspension innovation.
This user-friendly system enables fast, on-the-fly tuning of low- to mid-speed compression damping.
Two spring rates are available:
- 78.8 N/mm (fitted as standard) for average weight riders;
- 105.6 N/mm (optional) for heavier riders and/or more intense riding terrain or styles.
PERFORMANCE FEATURES
- Piggyback Reservoir: Increases oil capacity for enhanced thermal stability during intense riding.
- Internal Floating Piston (IFP) with Double Seals: Prevents gas and oil mixing, ensuring consistent damping and long-term reliability.
- High-Profile MDU Bumper: Adapted from Tech Suspension’s trials range, it enhances end-stroke progression and bottom-out resistance.
- DU Bushings: Provide secure, low-friction mounting and durable performance for demanding off-road use.
Technical specifications
ADJUSTMENTS
Rebound: 24 clicks
Compression: 20 clicks
Pre-load: 0-20mm
COIL SPRINGS
Sizes: 78.1 N/mm (Standard) 105.6 N/mm (Optional)
Material: Ultralight steel
PISTON
Size: 30mm
Material: CNC 7075 aluminum
BODY
Material: CNC 7075 aluminium, hard anodized
Colour: Silver
WEIGHT
Varies by version: 1.75 to 2.10kg
