MOTORCYCLE DESIGN

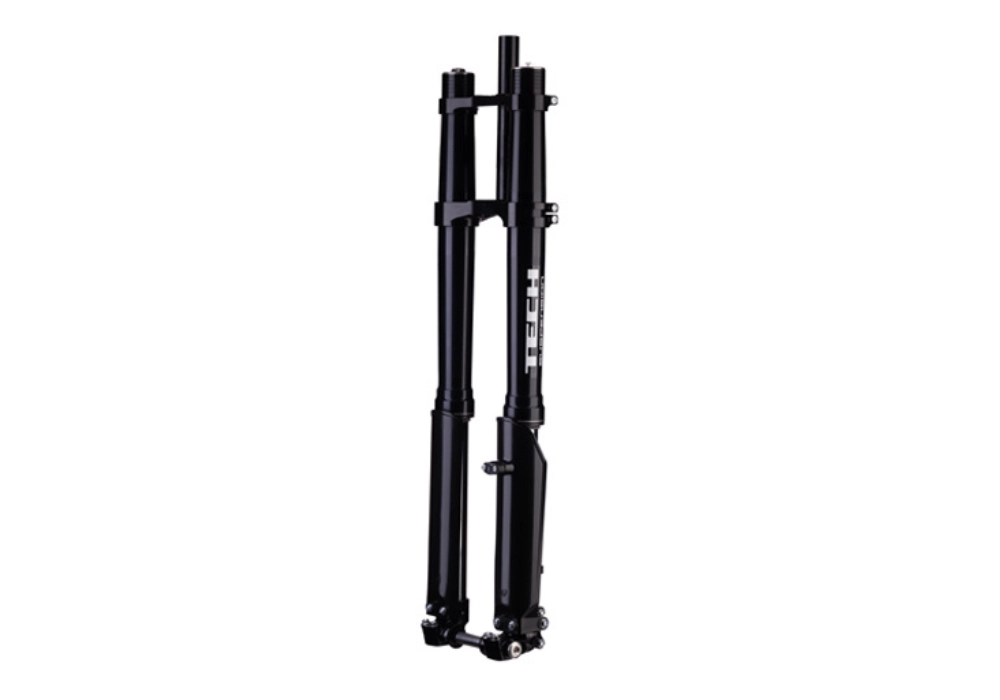

39mm stanchions and an upside-down, dual-crown design provide support and precise steering without flexing under heavy impacts.
Dual coil springs and hydraulic dampers designed and tuned for the weight and speed of lightweight E-Motos.
PERFORMANCE & ADJUSTABILITY
230mm travel with easy-to-use high/low-speed compression and rebound adjustments.
Factory-tuned for average weight riders of 60-80kgs and all-round riding using a medium spring rate.
Five different spring combinations are available to cater for all rider weights and types of riding.
COMPATIBILITY
Includes triple clamps, axle, and wheel spacer for direct installation on all lightweight E-Moto brands*.
Standard drop crown supports 21″ wheels; flat crown option available for 19″ wheels.
PM caliper mount supports 220mm brake discs.
DURABILITY
Anodized aluminum outer tubes and hard-chrome-treated steel stanchions resist wear in demanding condition
Technical Specifications
GEOMETRY
Axle to crown: 770mm
Travel: 230mm
SUSPENSION SYSTEM
Damping: Dual open cartridge
Spring type: Dual spring
ADJUSTMENTS
Rebound: 32 clicks
Compression: 22 clicks
STANCHIONS
Diameter: 39mm
Material: Alloy steel
Surface Treatment: Hard chrome plated
OUTER TUBES
Material: Anodized aluminum
Colour: Black
TRIPLE CLAMPS
Material: CNC Machined 6082 Aluminium
Colour: Black
LOWERS
Wheel size: 19 / 21
Axle clamps: Forged aluminum, black
Brake mount: PM for standard 220mm rotors (PM adaptor kit included)
Low-friction bushings, heavy-duty seals, and premium oil ensure consistent performance.
Plastic fork guards included for stanchion protection.
