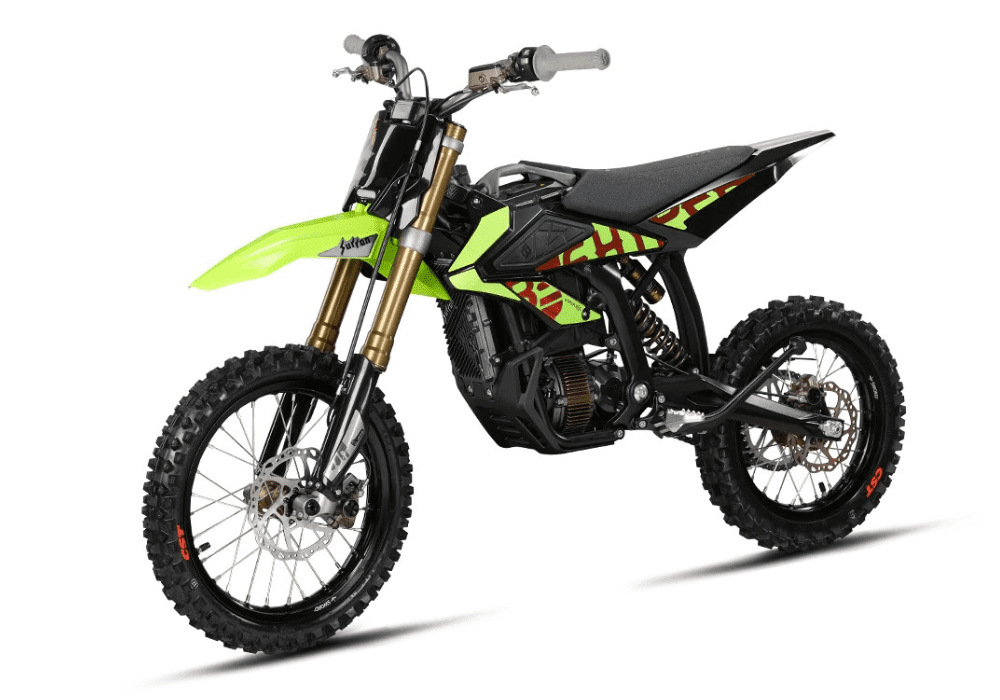

Purposeful Design Drives The Evolution Of A New Breed Of Vehicle,Bold In Character And Sharply Engineered For Excellence.
After 18 months of dedicated innovation, the Surron R&D team meticulously crafted and perfected hundreds of prototypes, achieving an exceptional lightweight design of just 83.8lbs. Every gram and millimeter reflects our commitment to precision and performance—truly “lightweight excellence in every detail, brilliance in every feature.”

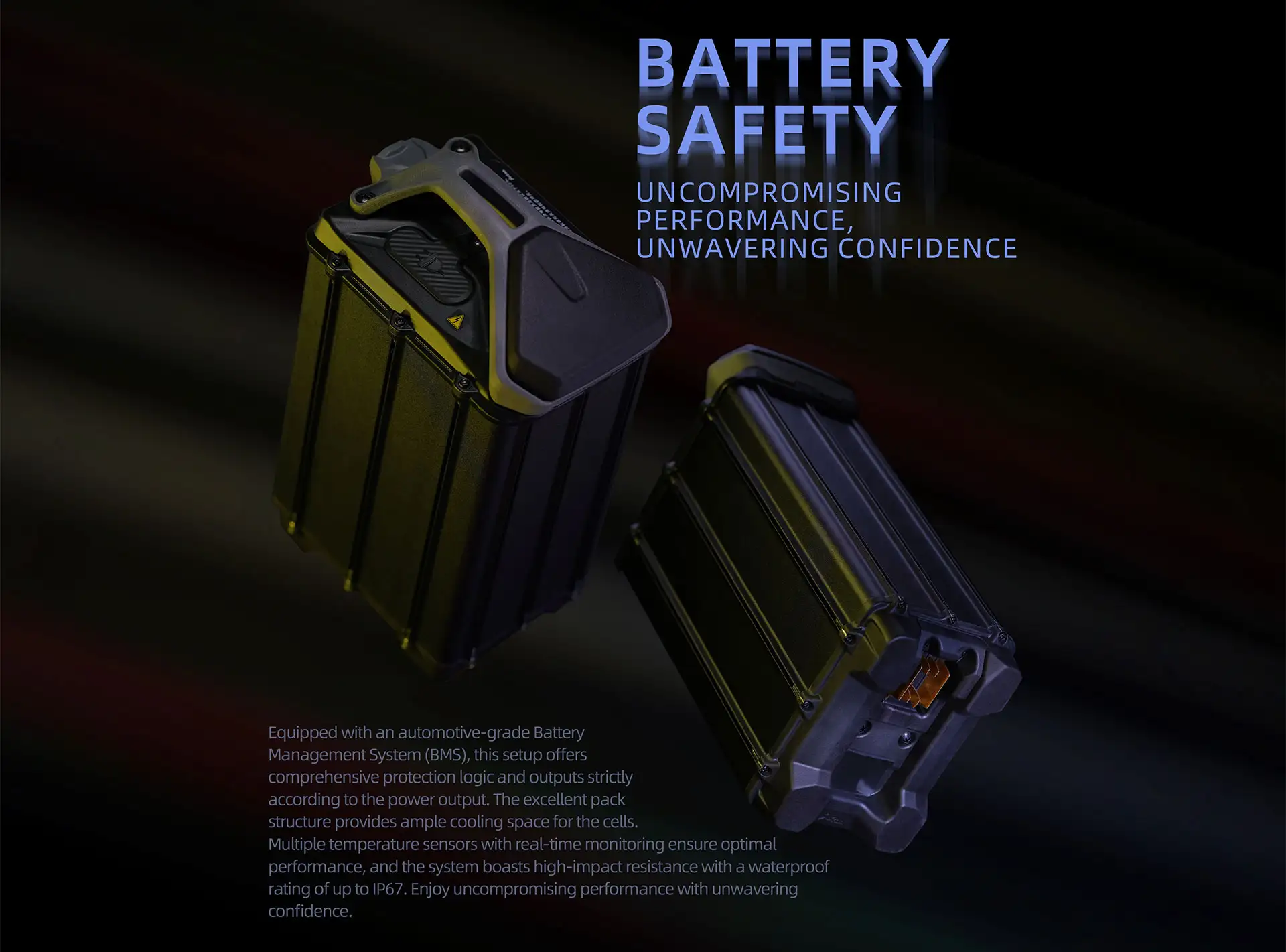

Battery swaps are now effortless, taking just 10 seconds thanks to the revolutionary coverless battery design and intuitive ‘S-S’ locking mechanism. This innovation fuels your adventures with endless inspiration, empowering every ride.

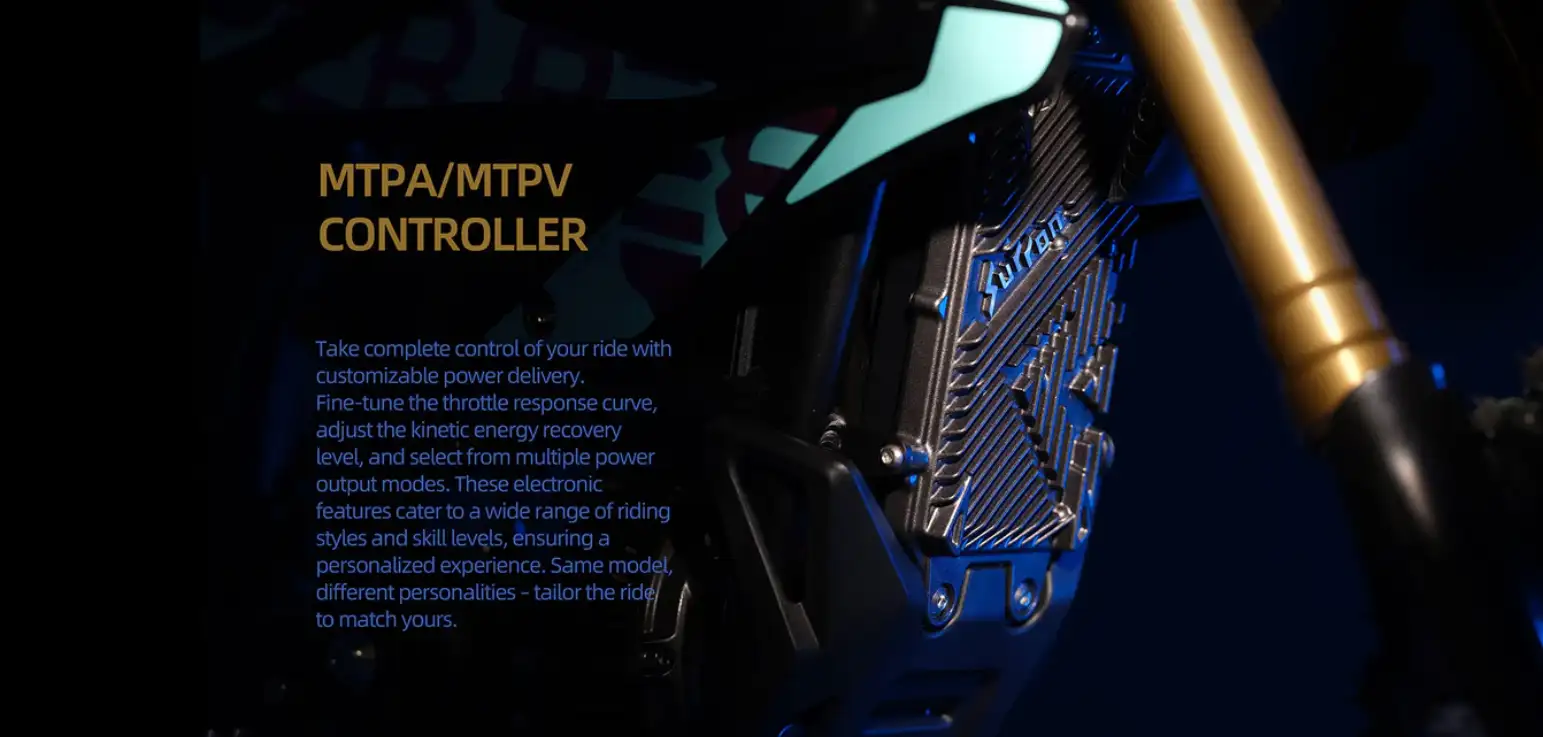

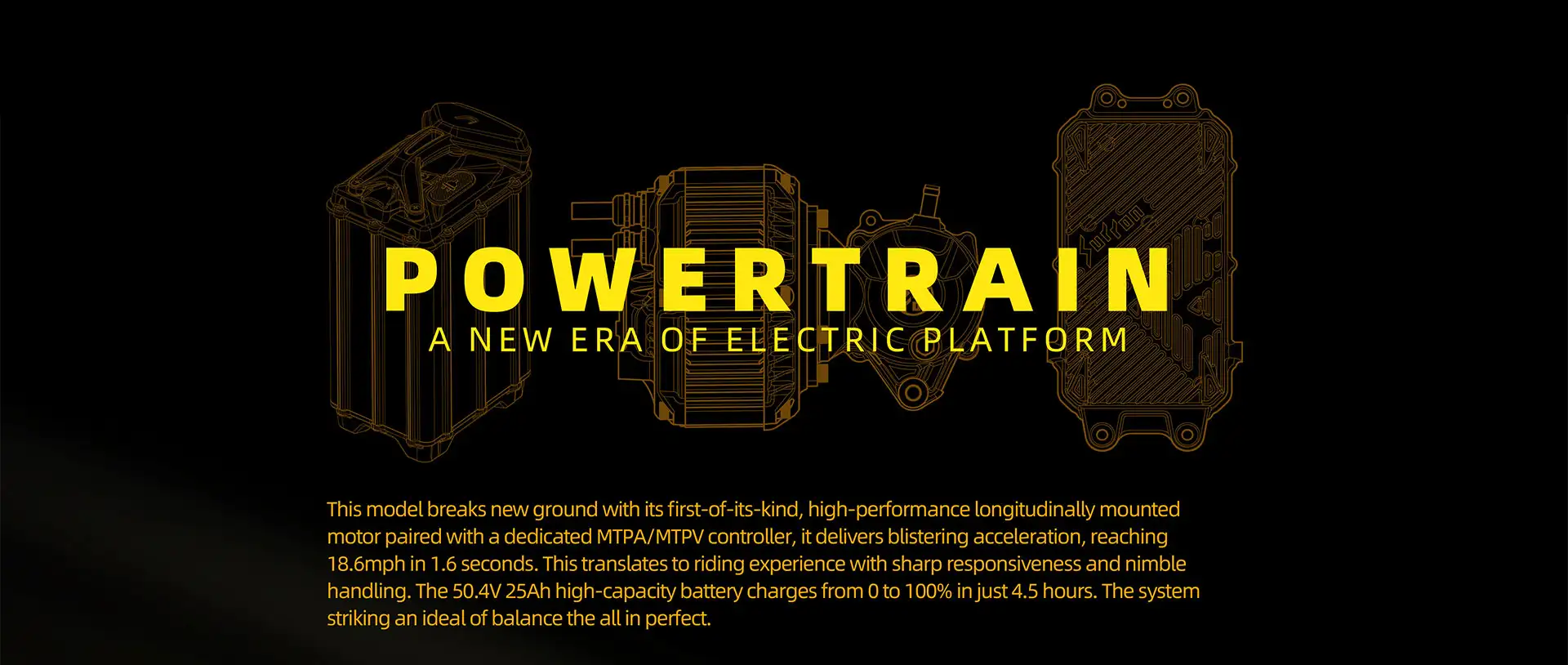

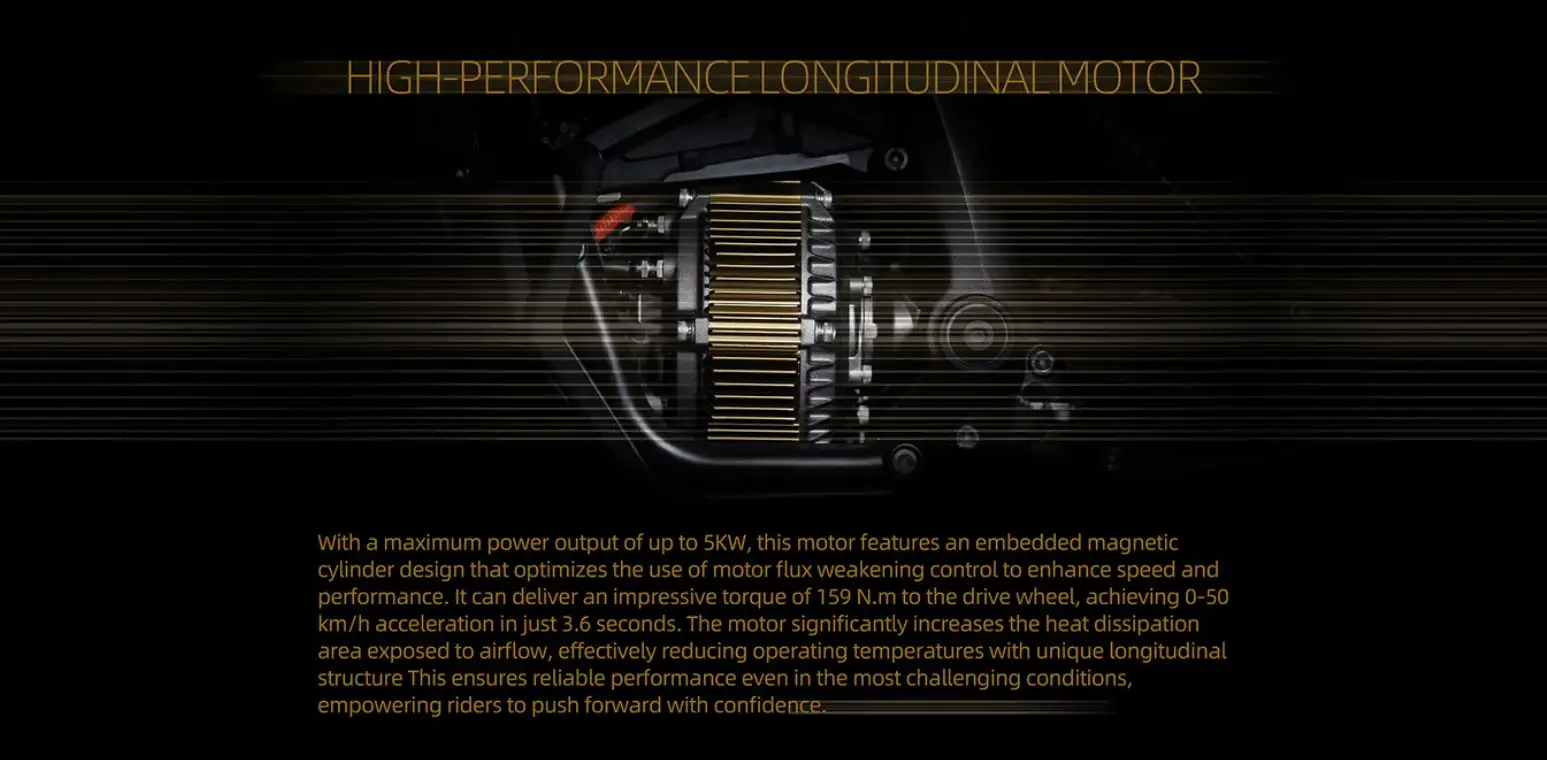

The cutting-edge power system features high-performance 21700 batteries packed with energy, advanced MTPA/MTPV controllers, and an integrated magnetic cylinder longitudinal motor. Paired with a newly designed angular reducer, it delivers smooth and direct power transmission. Striking the perfect balance between powerful performance and refined control, the system is safe, reliable, and built for effortless maintenance.
Specifications
Top Speed: 55km/hr
Range: 50km @ 40 km/hr
Charge Time (20%-80%): 2.5 hrs

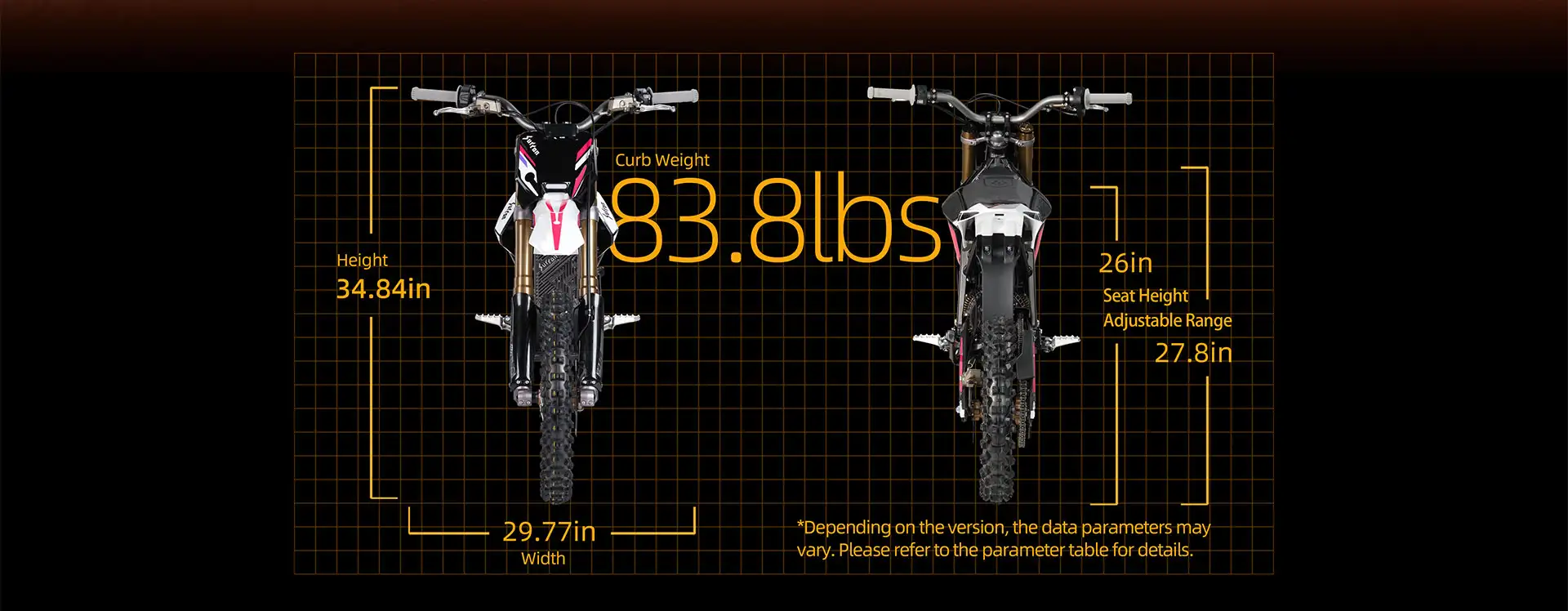

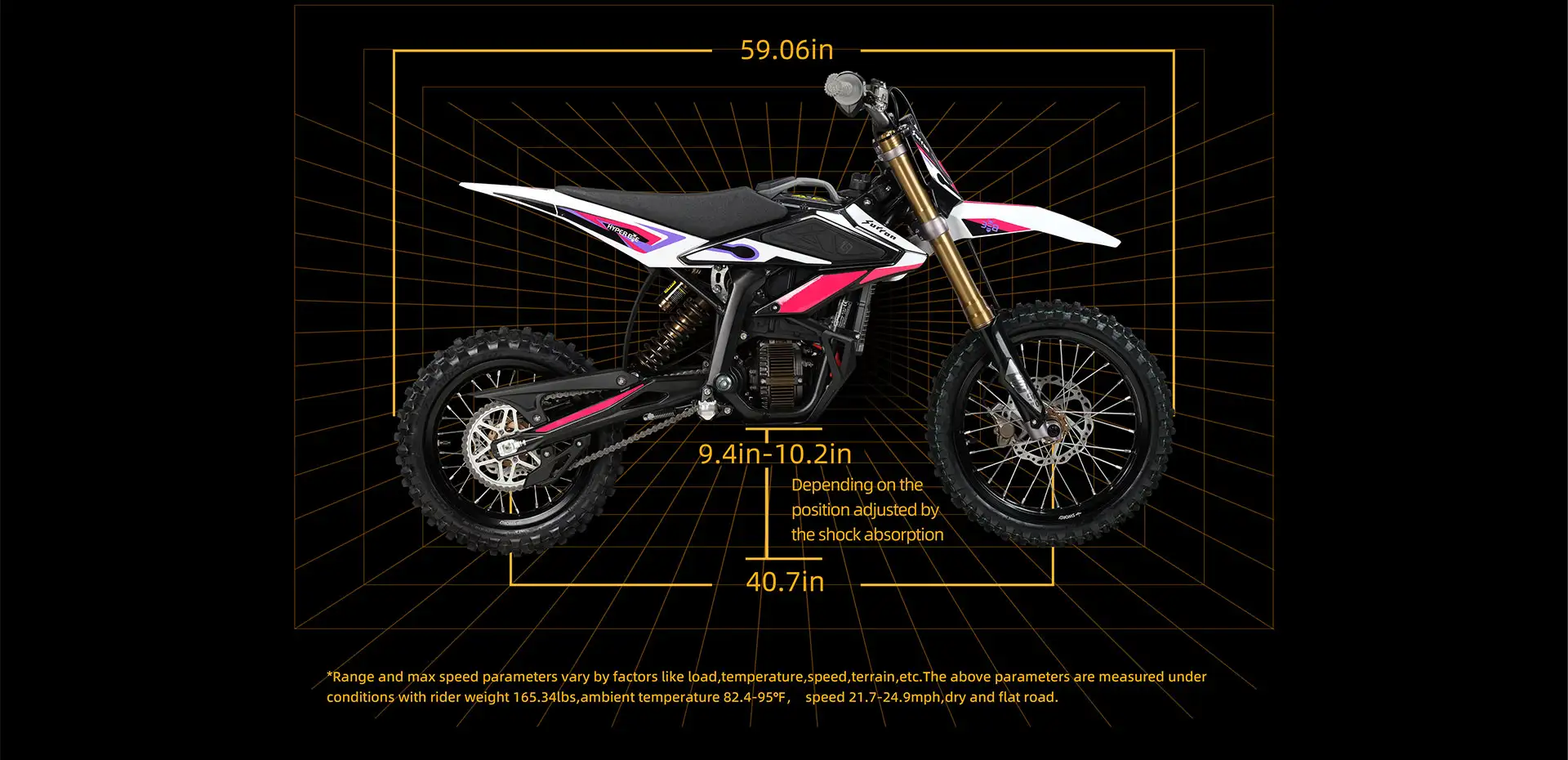

Dimensions: 1500mm x 680mm x 885mm
Seat Height: 685mm (adjustable range 665mm-705mm)
Curb Weight: 86 lbs
Ground Clearance: 240mm-260mm (Depending on the position adjusted by the shock absorption)
Max. Torque (on wheel): 159N.m

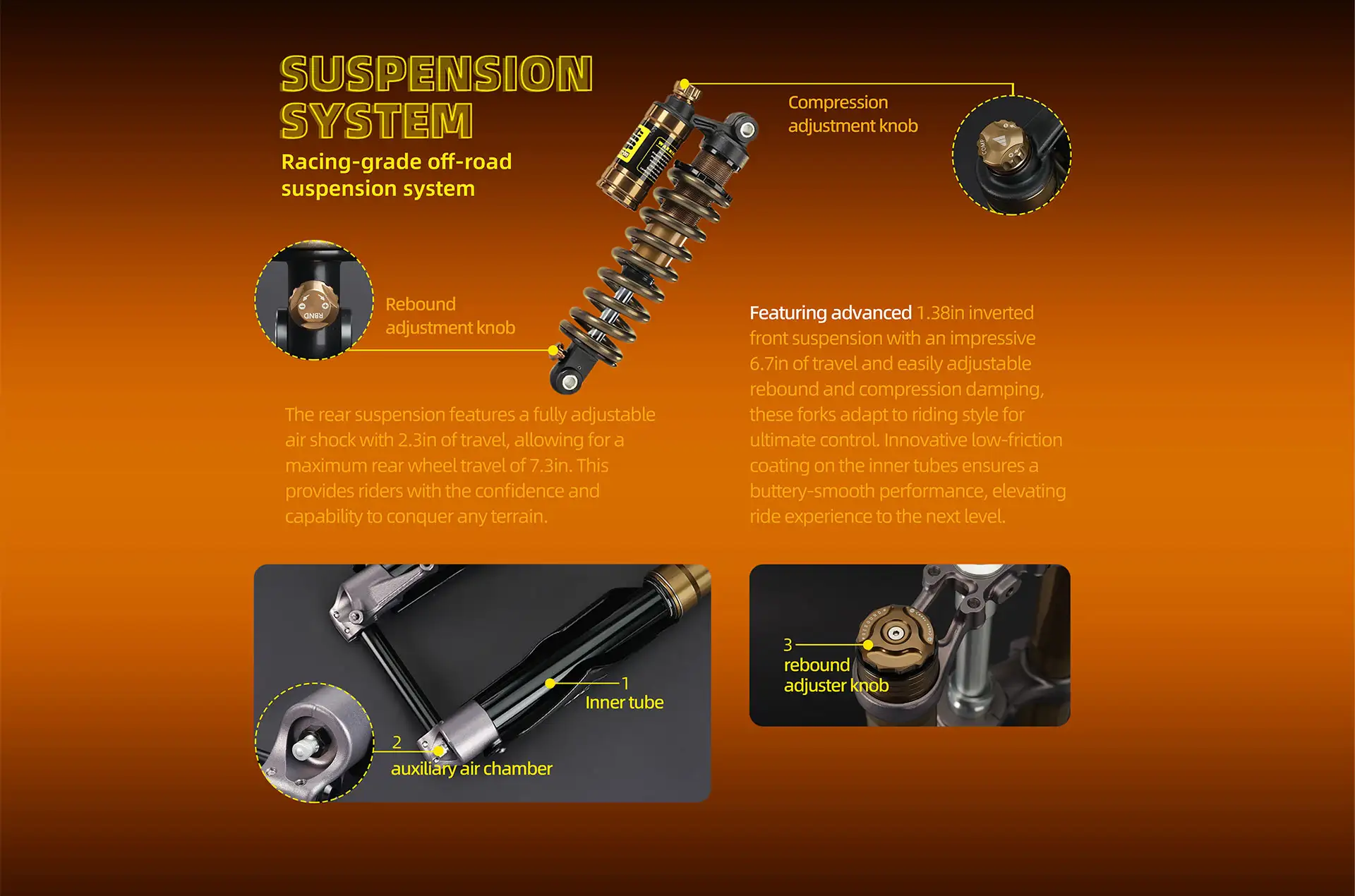

Front Suspension: 35mm inverted dual shoulder – oil spring type – adjustable rebound damping – adjustable compression damping pressure – total length 625mm, stroke 170mm
Rear Suspension: Airbag type adjustable 230mm single rear shock 60mm/185mm
Wheel Base: 1035mm
Carrying Capacity: 143 lbs
Frame & Tire: Front: 60/100-14 Off-Road, Rear: 70/100-12 Off-Road
Frame Material: Forged Aluminum Alloy
Assistant Functions:

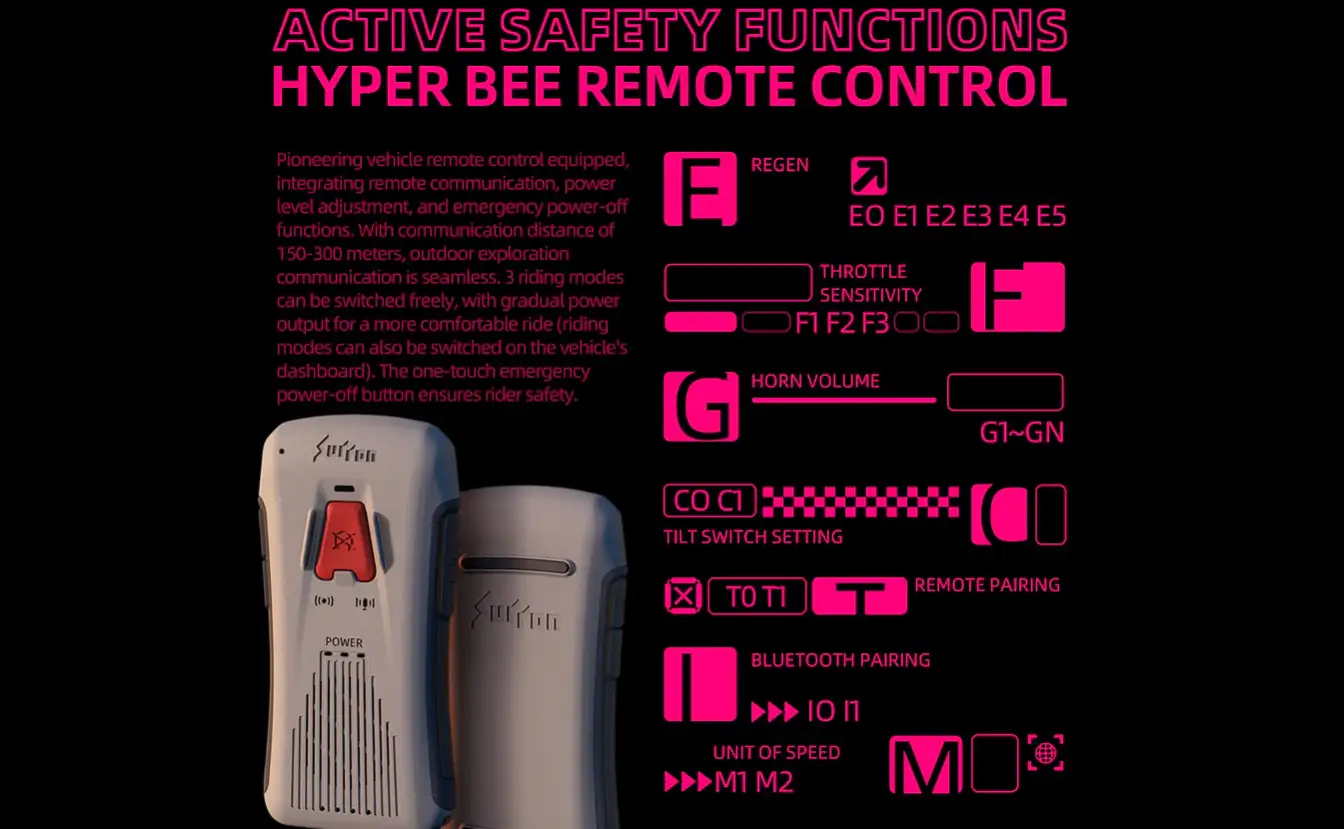

- Remote Control Functions: Intercom, Power Mode Setting
- Safety Functions: Magnetic Emergency Switch, Remote Energy Power Off
Tilt Protection: Gyroscope Sensor (can be turned off in feature setting mode)
